SucceBuy 1100W Magnetic Drill Press 7/12 Bits 40mm Electric Mag Bench Tapping Drilling Rig Machine

SucceBuy 1100W Magnetic Drill Press 7/12 Bits 40mm Electric Mag Bench Tapping Drilling Rig Machine

$328.99 USD
$0.00 USD $328.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Battery Included: no

Brand Name: succebuy

Certification: CE

Drill Type: Magnetic Drill

Frequency: 50/60Hz

High-concerned chemical: None

Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm

Magnetic Force: 2697lbf/12000N

Max. Boring Depth: 2.17"/55 mm

Max. Boring Diameter(Coring Drill): 1.57"/40 mm

Max. Boring Diameter(Twist Drill): 0.63"/16 mm

Max. Rotate Speed: 580 rpm

Origin: Mainland China

Power Source: Ac

Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm

Product Weight: 24.25lb/11kg

Rated Input Power: 1100W

Use: Renovation Team


Product Description
Magnetic Drill
Electric Magnetic Drill Press Machine
This portable drill press is designed for use with the included precision drill bits, making it suitable for creating bores with a diameter of 1.57 inches and a depth of up to 2.17 inches. Equipped with a robust 1100W copper motor, it delivers powerful performance while maintaining stability and durability over time. The integrated coolant tank helps prevent overheating, ensuring the drill press operates efficiently and prolonging its lifespan. With a magnetic adhesion force of 12000 N, the machine provides the stability needed for multidirectional drilling tasks. Take control of your projects with this reliable tool, capable of handling a variety of materials with accuracy and precision.

  • Exceptional Functionality

  • High-Quality Coring and Twist Drill Bits

  • Magnetic force of 12,000 N

  • Efficient Cooling Mechanism & Practical Design Features


Key Features
Outstanding Functionality
Engineered for accurate and challenging coring tasks, this magnetic base drill is equipped with a powerful 1100-watt motor. Maximum coring diameter: 1.57 inches (40 mm); Maximum travel range: 4.92 inches (125 mm).
Seven Versatile Drill Bits
Perfect for managing workpieces of various sizes, this magnetic power drill allows for quicker drilling when paired with the included core drill bits compared to standard drill bits.

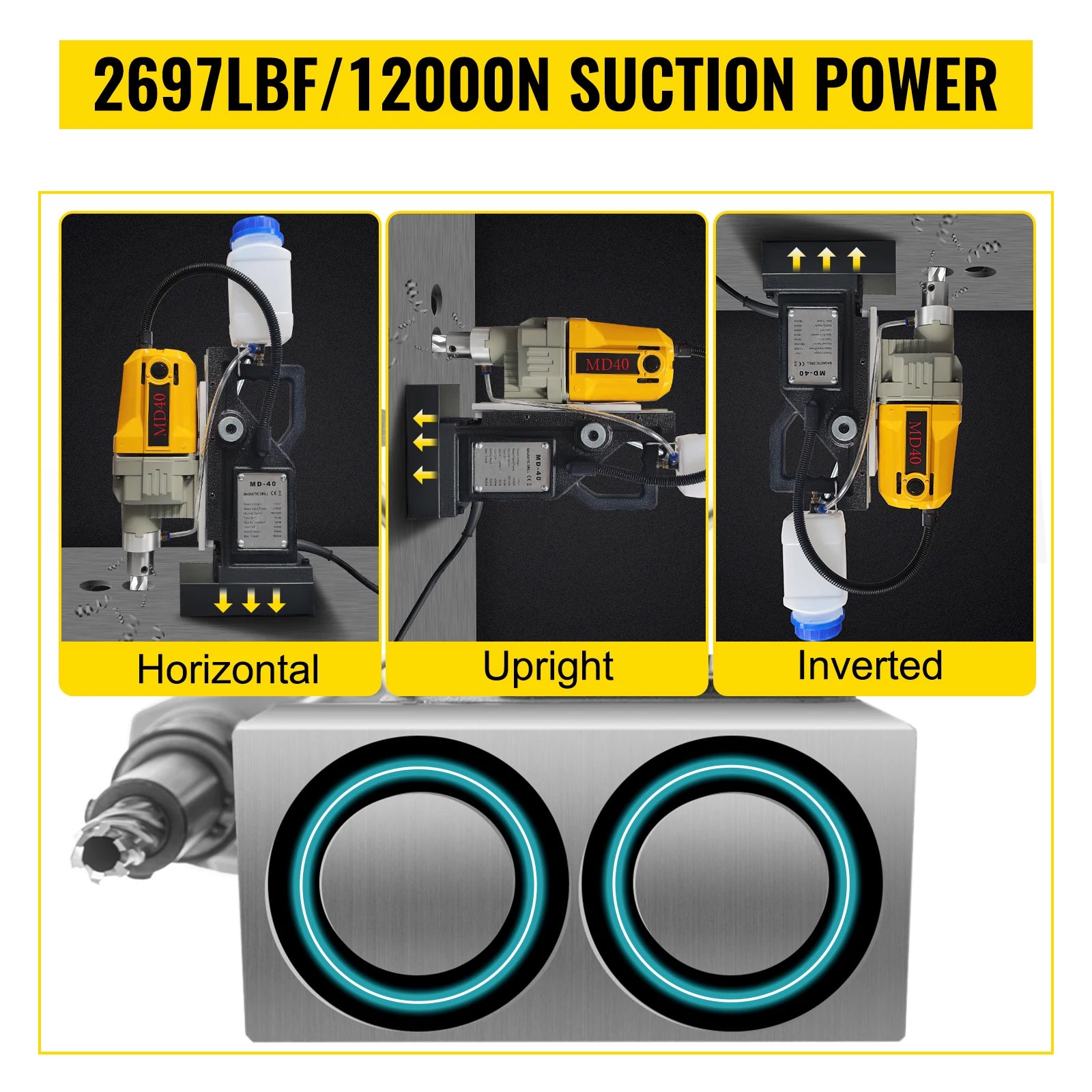

12000N (2697 lbf) of Suction Force
The high-strength iron base ensures the magnetic drill press remains securely in place during operation. Its robust electromagnet delivers a holding force of 12,000 N (2697 pounds), minimizing movement while drilling.
High-Performance Cooling Mechanism
This compact drill press is equipped with a removable built-in coolant system, designed to extend the durability of your drill bits and cutting tools. Additionally, it features dust-resistant air inlets and ventilation holes to help manage heat effectively.
Thoughtfully Engineered Design
The three extended crank rods make it simple to raise and lower the drill with minimal effort. Designed with ergonomic handles, it ensures convenient portability. Additionally, the straightforward control panel enables hassle-free operation.
Suitable for a Wide Range of Applications
This magnetic base drill is designed for applications such as steel construction, shipbuilding, bridge assembly, wind energy projects, drilling tasks, and electrical infrastructure work.
Specifications

  • Model: VV-MD-US7

  • Power: 1100W, 50/60Hz, 110V/220V, 10A

  • Max. Boring Diameter(Coring Drill): 1.57"/40 mm

  • Max. Boring Diameter(Twist Drill): 0.63"/16 mm

  • Max. Travel Distance: 4.92"/125 mm

  • Max. Rotate Speed: 580 rpm

  • Magnetic Force: 2697lbf/12000N

  • Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm

  • Max. Boring Depth: 2.17"/55 mm

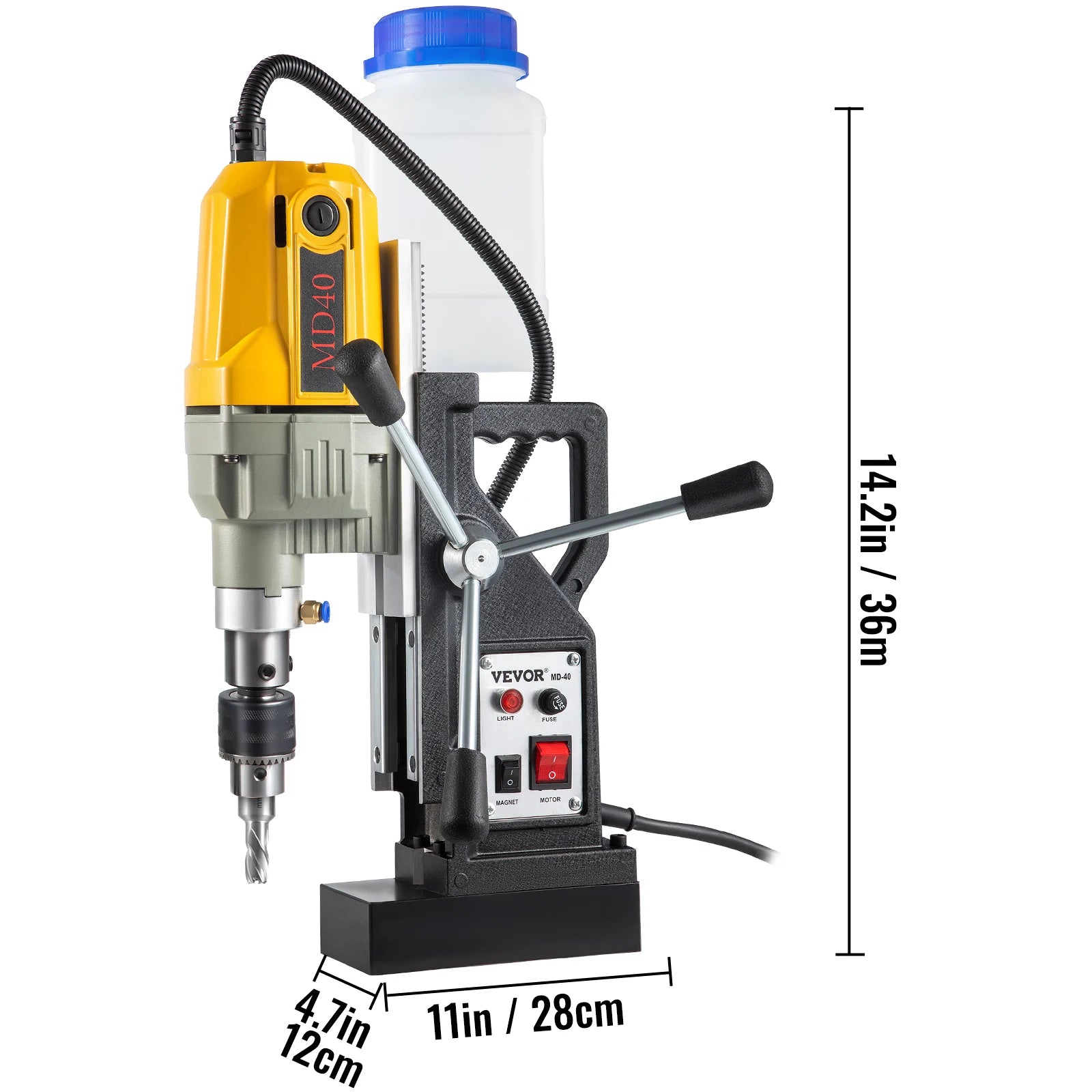

  • Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm

  • Product Weight: 24.25lb/11kg

Package Content

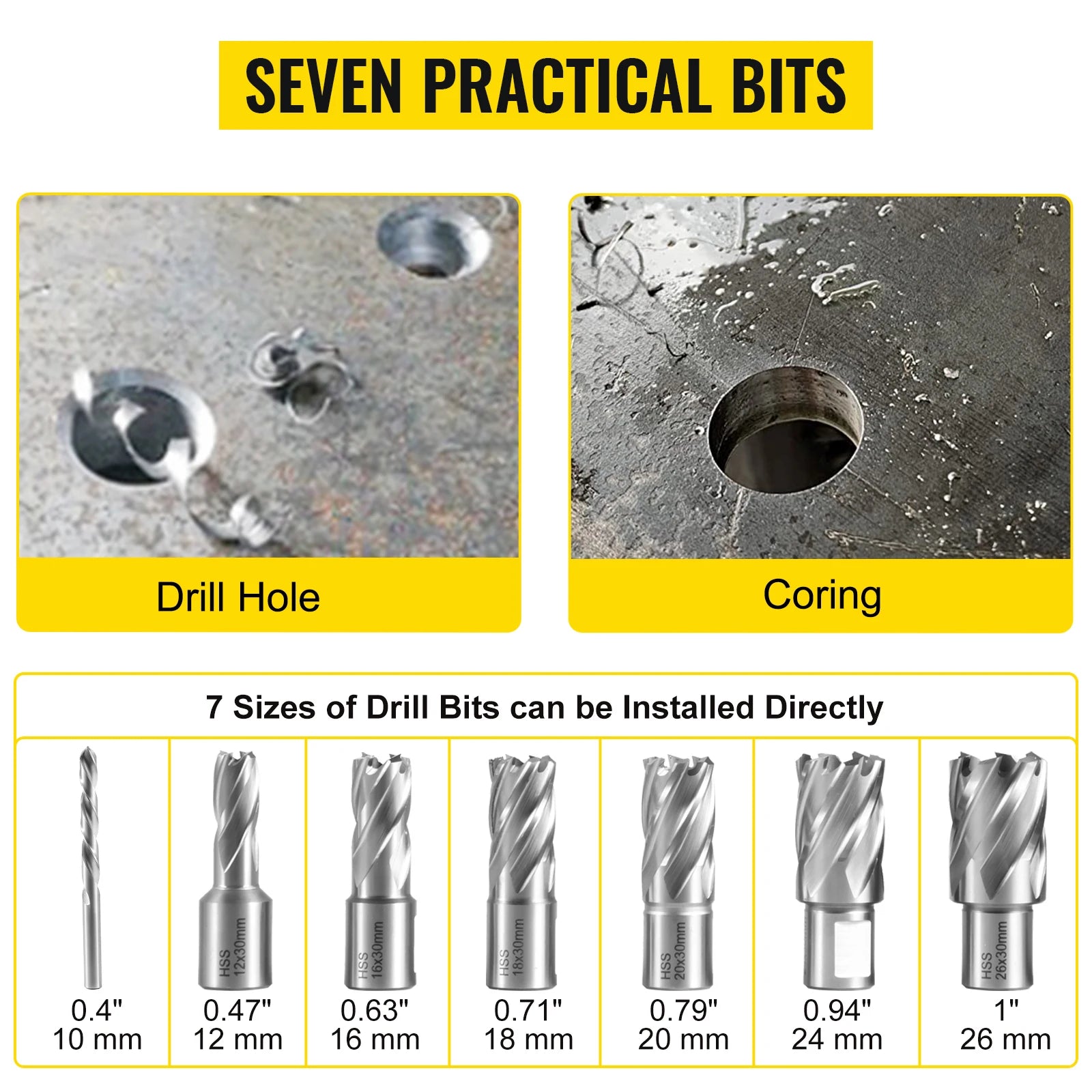

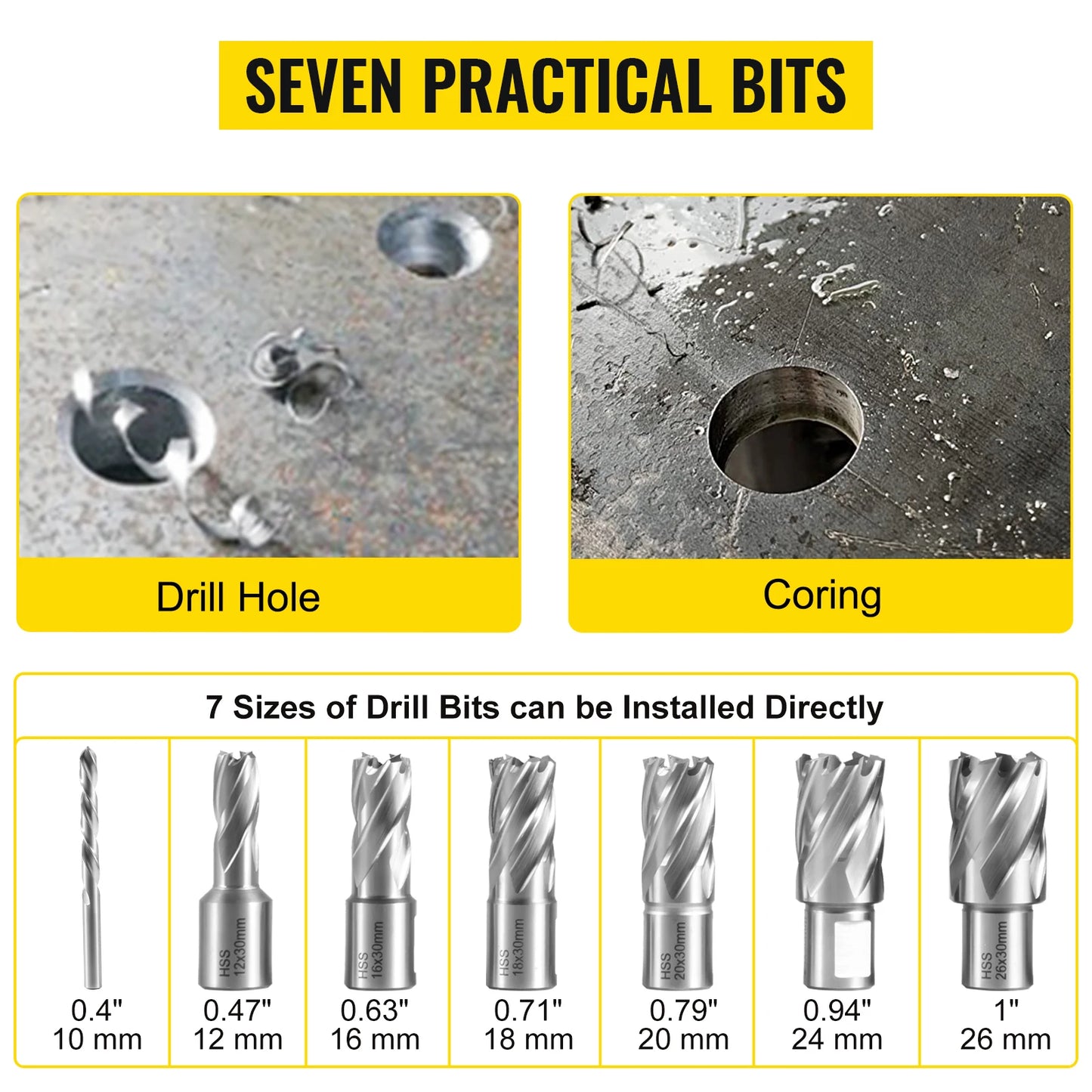

  • 6 x Coring Bits (Φ0.47"/12 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.94"/24 mm, Φ1"/26 mm)

  • 1 x Twist Drill (Φ0.4"/10 mm)

  • 1 x Coolant Tank

  • 1 x Drill Chuck

  • 1 x Thimble (0.25"x 4"/6.34 x 102 cm)

  • 1 x Rope

  • 1 x Manual

Specifications

  • Model: VV-MD-UK12

  • Power: 1100W, 50/60Hz, 220V, 5A

  • Max. Boring Diameter(Coring Drill): 1.57"/40 mm

  • Max. Boring Diameter(Twist Drill): 0.63"/16 mm

  • Max. Travel Distance: 5.90"/150 mm

  • Max. Rotate Speed: 580 rpm

  • Magnetic Force: 2697lbf/12000N

  • Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm

  • Max. Boring Depth: 2.17"/55 mm

  • Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm

  • Product Weight: 24.25lb/11kg

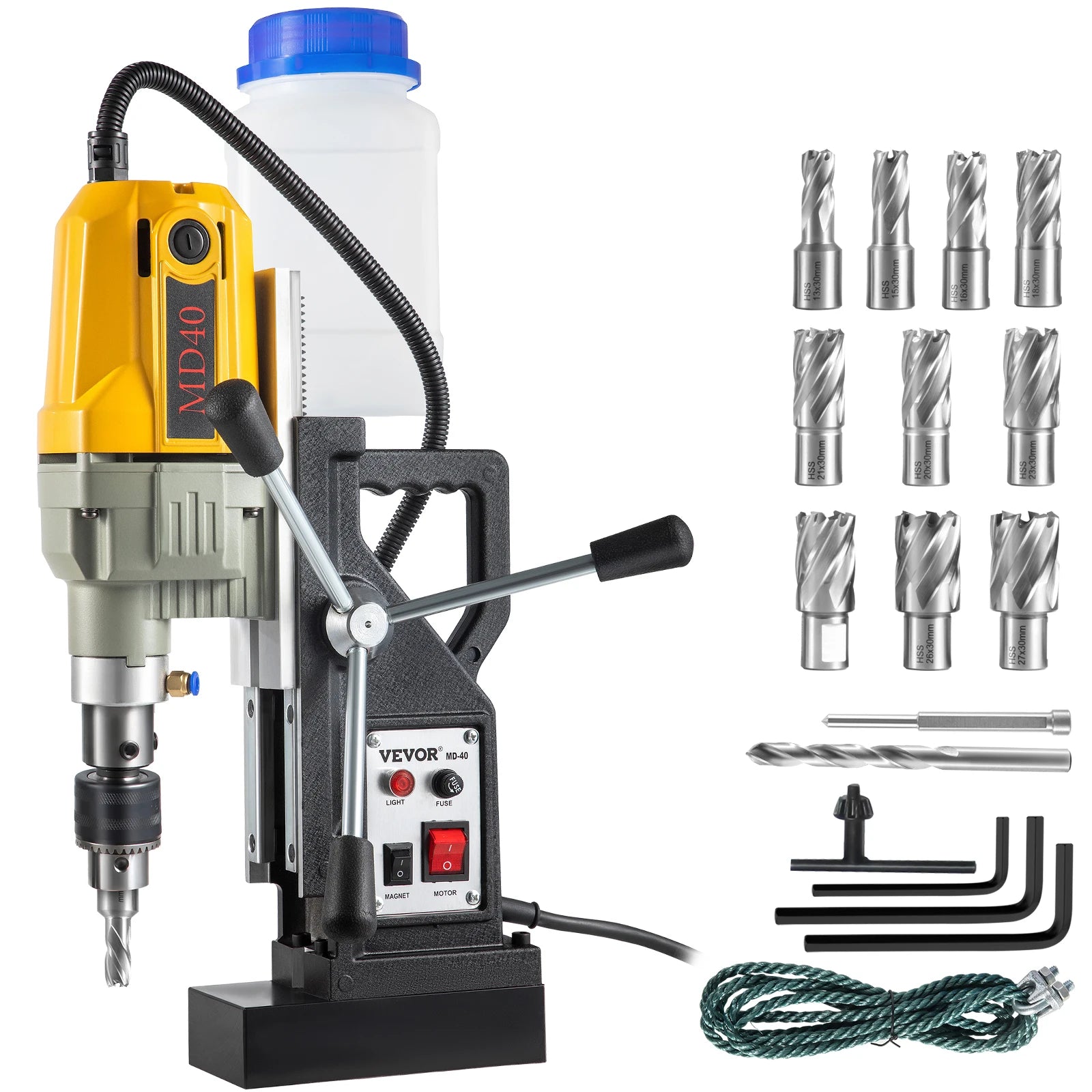

Package Content

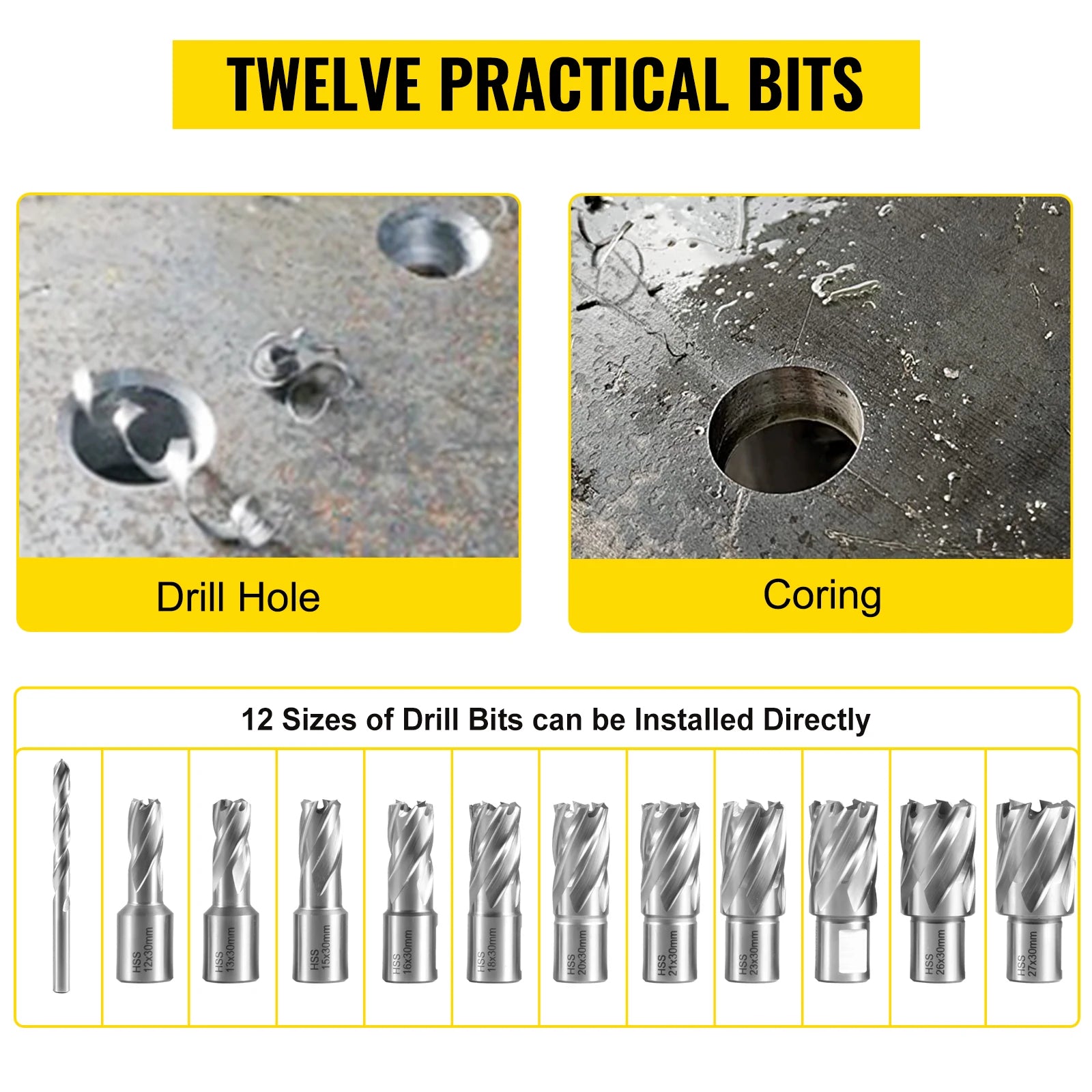

  • 11 x Coring Bits (Φ0.47"/12 mm, Φ0.51"/13 mm, Φ0.59"/15 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.83"/21 mm, Φ0.91"/23 mm, Φ0.94"/24 mm, Φ1"/26 mm, Φ1.1"/27 mm)

  • 1 x Twist Drill (Φ0.4"/10 mm)

  • 1 x Coolant Tank

  • 1 x Drill Chuck

  • 1 x Thimble (0.25"x 4"/6.34 x 102 mm)

  • 1 x Rope

  • 1 x Manual

Features & Details

  • Enhanced Efficiency: This 1100W magnetic drill operates at 580 RPM, delivering reliable performance for drilling tasks up to 2 inches deep and 1.6 inches in diameter. Equipped with a robust 10A motor, it effortlessly penetrates high-grade steel for industrial applications.

  • High-Quality Coring and Twist Drill Bits: This magnetic drill press is designed for optimal use with the provided drill bits, enabling you to create holes in a variety of commonly used sizes. Includes 6 coring bits: Φ0.47"/12 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.94"/24 mm, and Φ1"/26 mm. Also features twist bits: Φ0.4"/10 mm.

  • 12,000 N Magnetic Force: Constructed from high-purity iron, the electromagnetic base is robust and long-lasting. It delivers a strong magnetic force of up to 12,000 N (2697 lbf), ensuring precise machine positioning for accurate drilling.

  • Efficient Cooling & Practical Features: Designed with an ergonomic handle for a comfortable grip during transport. The three extended crank handles make operation more effortless. A built-in coolant tank ensures rapid heat dissipation, while the clear control panel allows for easy reading and operation.

  • Versatile Usage: This magnetic drill is designed to handle a wide range of drilling tasks across various surfaces. It is well-suited for applications such as shipbuilding, bridge construction, industrial and steel fabrication, wind turbine and power plant projects, railway production, equipment assembly, and numerous other industries.
